Quick Details


Place of Origin:Zhejiang, China
Brand Name:TENGEN
Model Number:TGB1NLE
Type:Residual Current

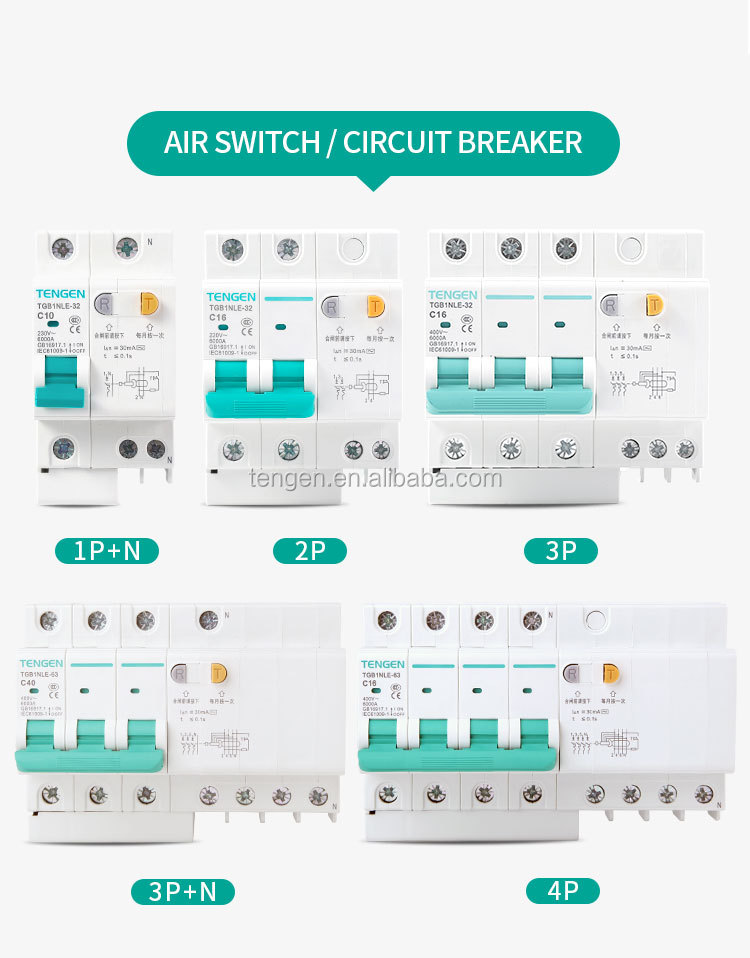

Poles Number:1P+N / 2P / 3P / 3P+N / 4P
Product name:Earth leakage circuit breaker
Color:White and green
Rated current In(A):6-125A
Rated voltage:230/400V AC
Rated frequency:AC50Hz
Certificate:CE/CCC
Working Temperature:-35℃ ~ 70℃
Electric Life:10000 (times)
Protection degree:IP 20
Warranty:3 months

Supply Ability


20000 Piece/Pieces per Month

Packaging & Delivery


Packaging Details:Standard Export Cardboard Box With Pallet Packing All In One or Special Package According To Customer

Port:Shanghai or Ningbo Sea Port


Quantity(Pieces) 1 - 100 >100
Est. Time(days) 20 To be negotiated


Product Description

Rated current
6A-125A
Number of poles
1P+N / 2P / 3P / 3P+N / 4P
Rated voltage
AC 230/400V
Impact resistance voltage
4KV
Trip curve
C,D
Life time
10000(Electric)/20000(Mechanical)times
Inlet terminal
Upper
